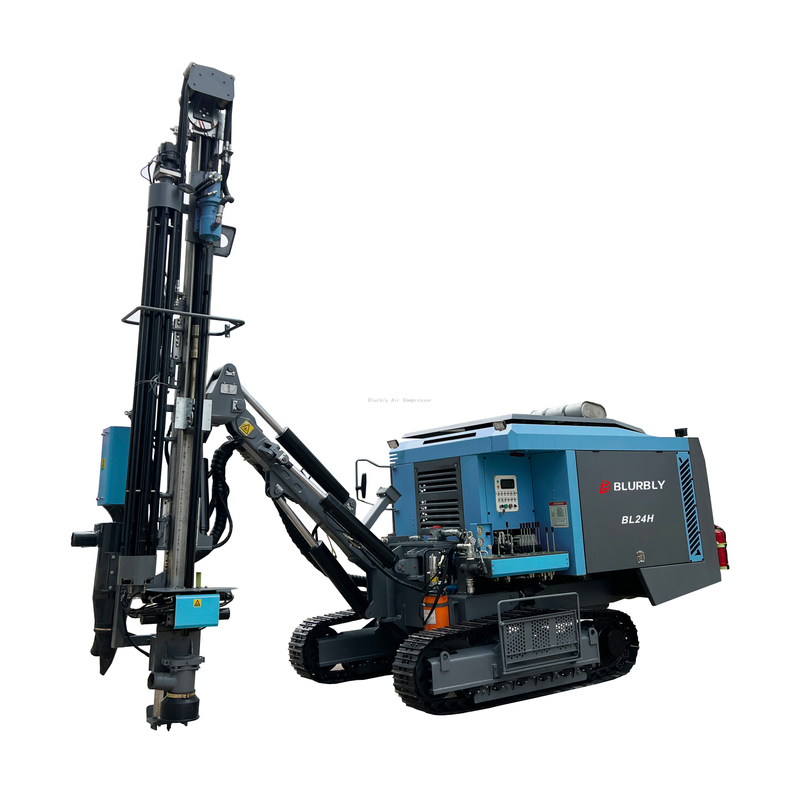

78KW DTH Drilling Rig

5 0 Reviews

Product name 78KW Drilling machine
Application Mining Project
Air consumption 9-15 m3/min
Traveling speed 0-2 km/h
Drilling hardness f=6-20
Fuel tank volume 70L
Climbing capacity 30°
Travelling speed 0-2km/h
Method of feed Oil cylinder and chain
Rated power 78KW

Type Rotary Drilling Rig
Power Type Diesel
Brand Name Yuchai
Usage MINING
Dimension(L*W*H) 5700*2100*2300mm
Mobility yes

Quantity:
Power:	78 KW 90 KW 140 KW
Availability:





Inquire Add to Basket

Model:
BL-LC617
Brand:
Blurbly

Product Description

Model	BL-LC617
Drilling diameter	90-100mm
Depth	30m
Engine brand	Yuchai
Engine power	78KW
Drilling rod	φ64*3000mm
Hammer	3"/4" inch
Working pressure	0.8-1.6 Mpa
Air consumption	9-15 m³/min
Rotary torque(Max.)	2400N.m
Rotary speed	0-150r/min

If you have any questions, please contact us email or WhatsApp and we will get back to you as soon as possible.
