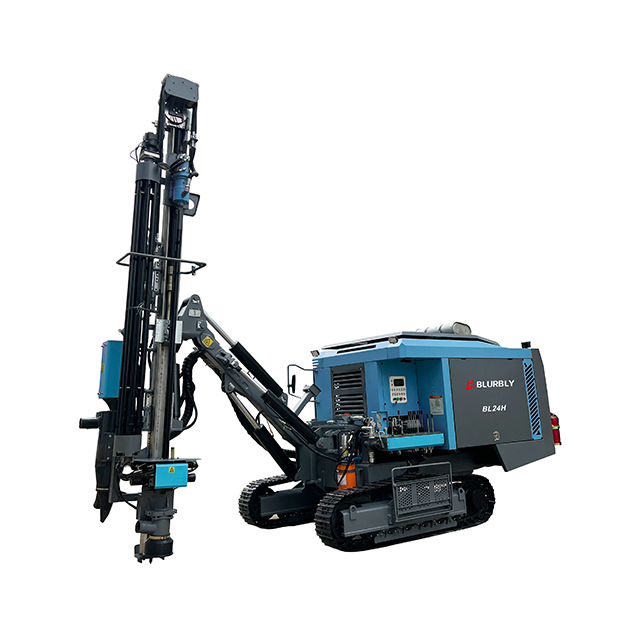

DTH Drilling Rig

1. Humanized integrated operation platform, easy to use and operate.
2. The walking is strong and powerful, and the air compressor can be towed and climbed freely.
3. The model can cover all working conditions and meet the needs of different customers.
4. Well-designed casing, beautiful appearance, easy maintenance.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Model:BL24H

Drilling diameter(mm):115-130

Depth(m):30

Engine brand:Cummins

Engine power(kw):179

Drilling rod(mm):φ64*3000

Hammer(inch):4"

Rotary torque(Max.)(N.m):1700

Rotary speed(r/min):0-150

Air compressor

Working pressure(bar):18

Capacity(m3/min):15

Travelling speed(km/h):1.5/3

Drilling hardness:f=6-20

Dust collecting:Dry dust collection

Dimension(mm):8800*2300*2600

Weight(kg):11000
