OW-400/2-12
Blurbly

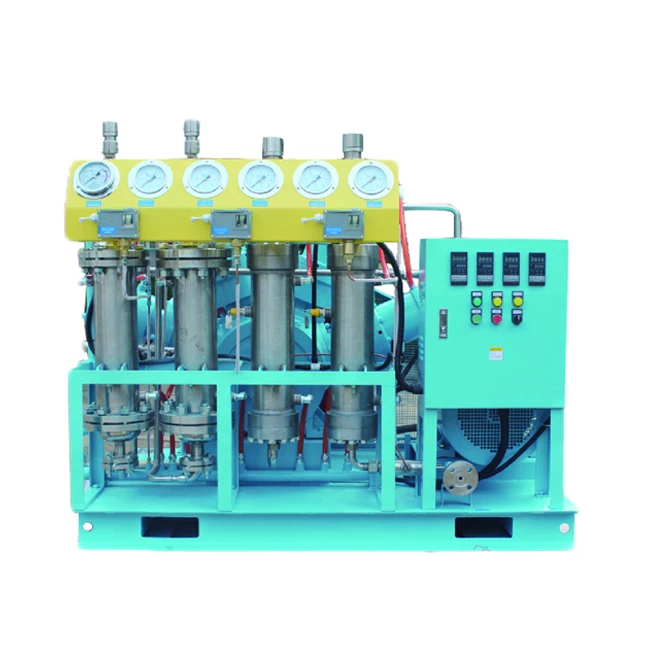

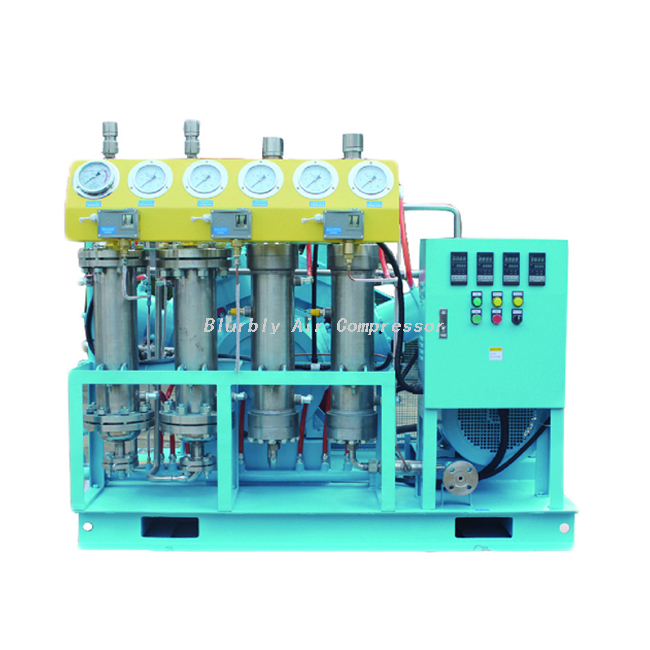

| Product name | 55KW Reciprocating low pressure oxygen compressor |
| Intake pressure | 2 bar |
| Discharge pressure | 12 bar |
| Nominal volume flow | 400 Nm3/h |
| Motor power | 55KW/74HP |
| Working voltage | 380V/50Hz/3 phase |
| Inlet valve size | DN100 |
| Outlet valve size | DN50 |
| Compression stages | Two |
| Overall dimension | 2000*1300*1600mm |
| Weight | 1200 KG |
