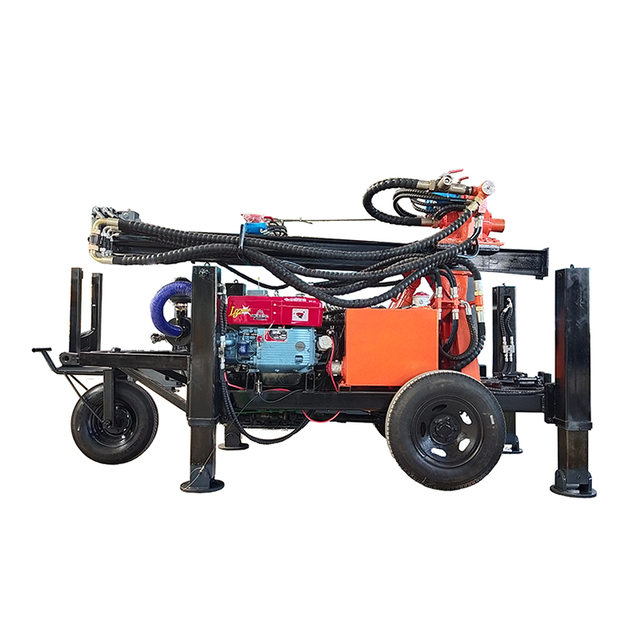

Trailer Drilling Rig

This series of water well drilling rigs has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economy and durability, and low failure rate. Once launched, it has been recognized by the market and widely used in mining engineering construction, civil drilling, and geothermal Drilling and other fields. Widely used in industrial and agricultural water conservancy projects, test wells and other exploration drilling. Especially for geothermal heating drilling, it can also meet various projects such as engineering foundation reinforcement, loose gravel drilling and rock formation connection. Our drilling rigs have higher efficiency, lower failure rate, are more economical and durable, and have a high overall cost performance. Dual systems can be added: 1. Aerodynamic system with air compressor 2. Mud pump system with mud pump
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Blurbly


The hole diameter(mm):100-219


Engine brand:Changchai

Engine power(kw):23

Drill pipe diameter(mm):Φ76 Φ89

Drill pipe length(m):1.5/2

Swing torque(N.m):2200-3000

Swing speed(rpm):40-65

Rig lifting force(T):6

Using air pressure(MPA):1.45-2.5

Air consumption(m3/min):15-29

Walking speed(km/h):3

Climbing angles(Max.):30°
