Water Well Rotary Drilling Rig

5 0 Reviews

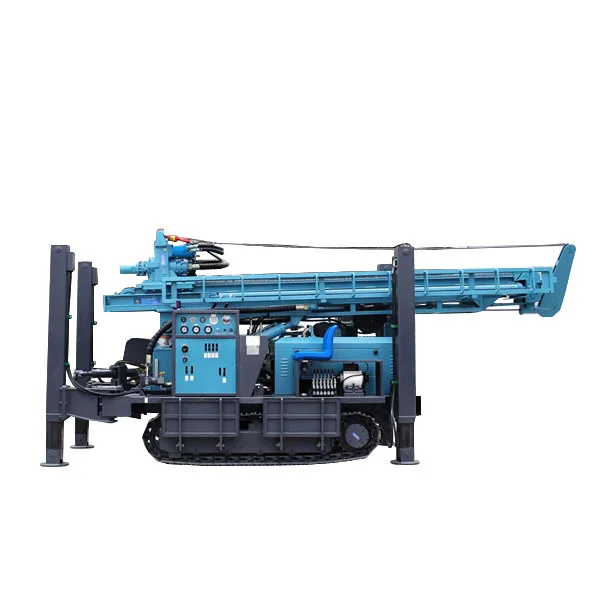

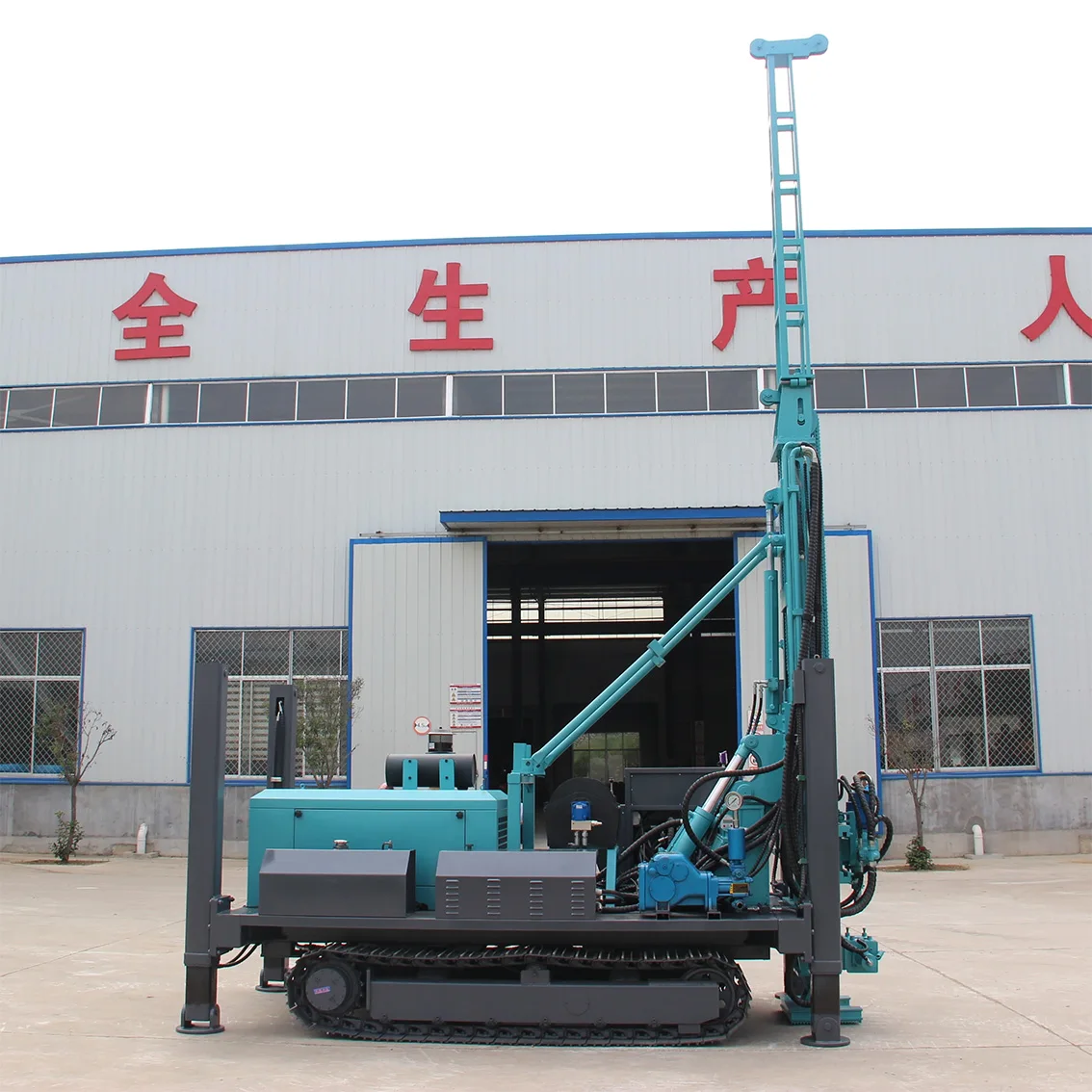

Product name 180M Rubber crawler water well drilling rig
Application Water Well Driling
Drilling Depth 180m
Feature High Drilling Efficiency
Keyword Water Drilliing Rig
Drill pipe diameter(mm) 76/89
Drill pipe length(m) 1.5m 2.0m 3.0m
The engine brand Quanchai
Equipped capacitor(kw) 55
One-time advance length(m) 3.3

Dimension(L*W*H) 3950*1550*2270mm

Quantity:
Availability:





Inquire Add to Basket

Model:
BDX180
Brand:
Blurbly

Product Description

Equipped capacitor	55KW
Engine brand	Quanchai
Rig lifting force	10 T
Drill pipe diameter	76 89
Drill pipe length	1.5m 2.0m 3.0m
Drilling depth	180m
One-time advance length	3.3m
Walking speed	2.5 km/h
Weight	4.5T
Dimension	395015502270mm

If you have any questions, please contact us email or WhatsApp and we will get back to you as soon as possible.
