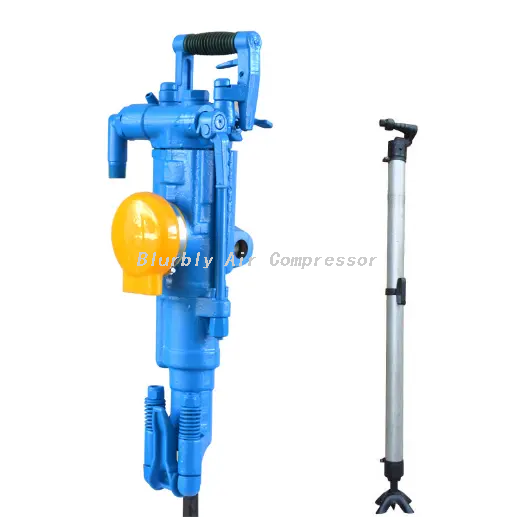

Air Leg Rock Drill

Product name Penumatic rock drill
Water pipe inner Dia 13 mm
Air pipe inner Dia 25 mm
Drilling frequency 37 Hz
Air consumption 3.9 m3/min
Air pressure 4~6 bar
Max length 659 mm
MOQ 1 Set
Rock drill depth 5 m
Key word Drilling jack hammer

Brand Name Blurbly
Type Jack Hammer
Machine Type Drilling Equipment
Material Carbon steel
Processing Type Forging
Use Well Drilling

Quantity:
Availability:





Inquire Add to Basket

Model:
YT-29
Brand:
Blurbly

Product Description

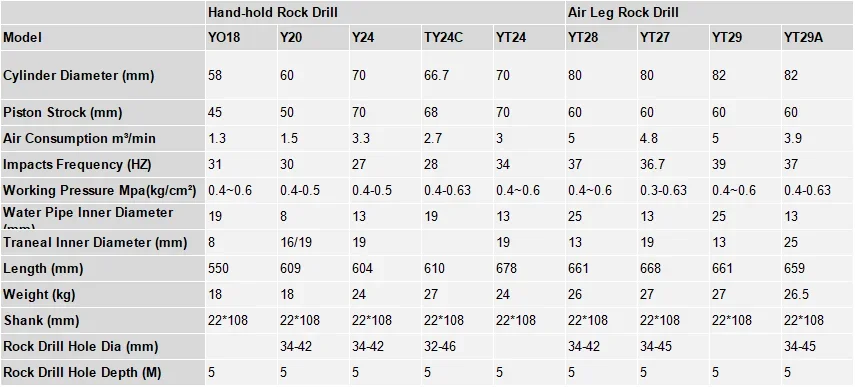

Basical Specification
Model	YT29
Cylinder diameter	82 mm
Piston strock	60 mm
Air consumption	3.9 m3/min
Impacts frequency	37 Hz
Working pressure	4~6 bar
Water pipe inner diameter	13 mm
Traneal inner diameter	25 mm
Length	659 mm
Weight	26.5 kg
Shank	22*108 mm
Rock drill hole diameter	34-45 mm
Rock drill hole depth	5 m
dimension	763226cm
