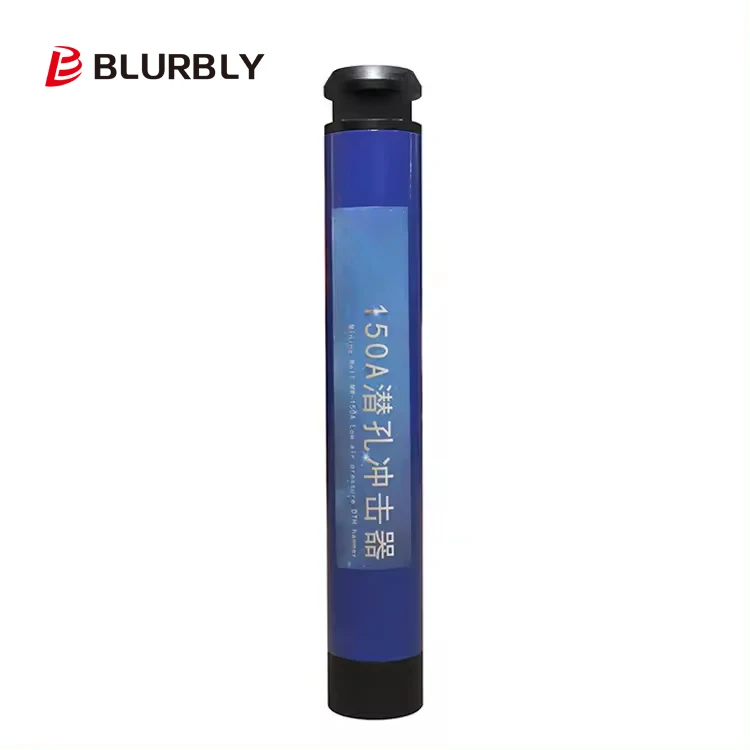

Down The Hole Hammer

5 0 Reviews
Part name DTH hammer
Application Drilling rigs/Water well drilling
Diameter 90-305mm
Recommended rotation speed 40-55 r/min
Length(Less bit) 628 mm
Working Pressure Impact rate at 0.63Mpa
Weight 5.5 kg
Keyword Drilling machine parts
Material Carbon steel
MOQ 1 Set
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • CIR50

  • Blurbly

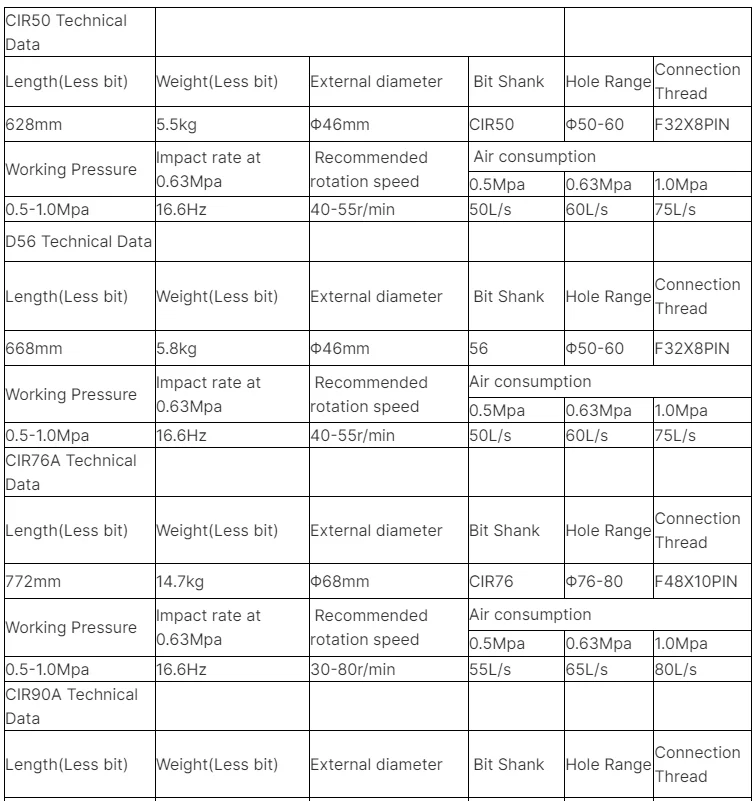

Model
CIR50



Length(Less bit)
628 mm



Weight
5.5 kg



Outer diameter
Φ46 mm



Connection thread
F32X8PIN



Hole range
Φ50-60 mm



Working pressure
Impact rate at 0.63Mpa
Recommended rotation speed
40-55 r/min
