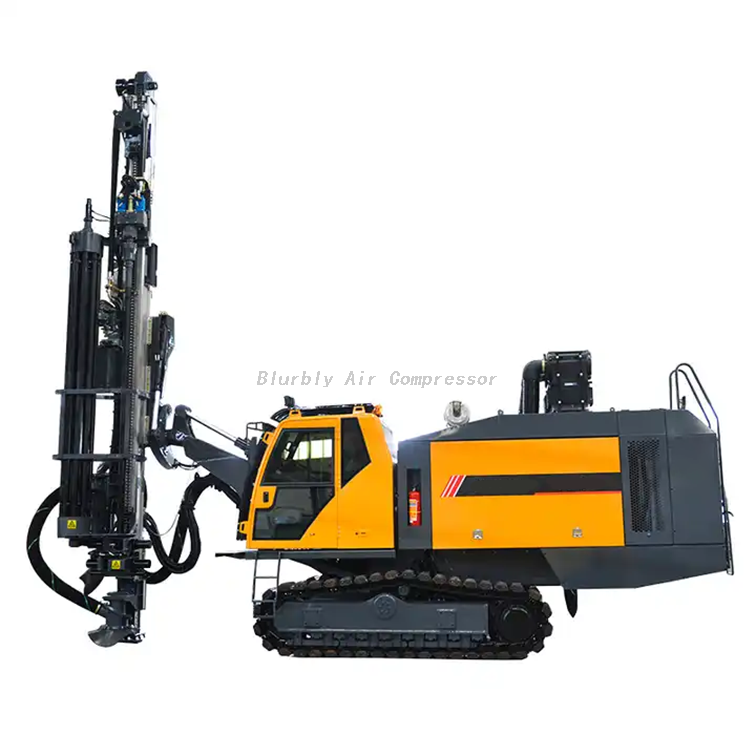

Hydraulic Drill Rig for Mining

Product name KT15 hydraulic crawler mine drilling rig
Application Mining/Drilling
Motor power 298 KW
Drilling hardness f=6-20
Climb capacity 25°
Applicable air pressure 20 bar
Engine model Cummins QSZ13-C400
Max feed force 65000N
Air consumption ≥22m3/min
Boom lift 42°up, 20°down

Drilling Diameter 135-190 mm
Drilling Depth 35 m
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Brand Name Blurbly
Usage Mining
Dimension(L*W*H) 11500*2716*3540mm

Quantity:
Availability:





Inquire Add to Basket

Model:
BL-KT15
Brand:
Blurbly

Product Description

Model	BL-KT15
Drilling diameter	135-190 mm
Engine power	298 KW
Climb capacity	25°
Drilling hardness	f=6-20
Drilling depth	35 m
Guide tilt	125°
Boom lift	42°up,20°down
Crawler balance angle	10°up,10°down
Applicable air pressure	20 bar
Air consumption	≥22m3/min
Max feed force	65000 N
Engine model	CumminsQSZ13-C400
Dimension	1150027163540 mm
Weight	8000 KG
